Brazing Machine
Air Cooling Induction Heating Equipment
The Main power component of this product uses the cool wind condition to proceed cooling, which can enhance the energy transformation and reduce the electrical energy loss that cut equipment’s failure rate effective and gurrantee the useful life of the equipment. It mainly applies in the low temperature condition heating about 0-500 degree. for example: food roasting, zinc base alloy melting, the heat source of compression molding machine and extruding machine and so on.
Technical Parameter
MTF – 15KW
Input Voltage = 220VMax. Output Power = 15kw
Fluctuating Frequency = 25-5-KHz
Duty Rate = 100%
Working Status = 24 Hours Consecutive working
MTF – 25KW
Input Voltage = 380V
Max. Output Power = 25kw
Fluctuating Frequency = 10-30KHz
Duty Rate = 100%
Working Status = 24 Hours Consecutive working

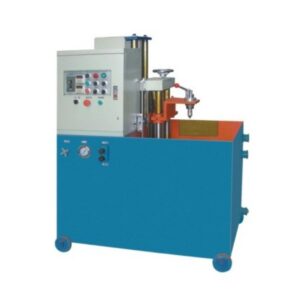

The Vertical Solid High Frequency Quenching Machine
The Vertical Solid high Frequency Quenching Machine is one of the complete set induction heating equipments of our companie. It mainly applied processing axis class and the gear component, but also the plate class components and the peculiar part. It adjust the high/ ultrasonic frequency power source, using the spray coolant conditions, can meet factories’ normal request. For the hydraulic pressure actuation, the electrical control semiautomatic machine. mainly used in quenching, annealing or the fire working procedure, it has manually, semi-automatic, and full-automatic function, simple operation and easily to learn.
Technical Parameter
– Total Power = 2kw
– Max. Work piece length = 500 – 1000mm
– Work piece rotation speed range = 0 – 200r/min
– Work piece return speed = 2 – 50mm/s
– Max. Diameter of quenching work piece = 300mm
– Max. workpiece weight = 200kg
– The scope of the work piece moving speed = 2.50mm/s
– Machine tool weight = 350kg
– Dimensions = 1100x650x1450/mm, 1350x650x2100/mm
Who Are We
Malhotra Technologies was founded in 2006, which is engaged in R&D, production and sale of solid induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines Malhotra Technologies (induction master) is a reputed company that manufactures and supplies a broad assortment of induction heating machine types induction-hardening machines, Induction Forging Machines, high-frequency induction heaters, medium-frequency power heaters, UHF induction heaters, annealing machine, sintering machine, electroplating rectifiers, heat-treatment machine, and Induction brazing machine. They also supply products like 15 series induction heaters, 25 series induction heaters, 35 series induction heaters, 70 series induction heaters, medium frequency power heaters, melting machine frequency power heaters, and forging furnace frequency power heater Technologies. These items are developed using high-quality raw materials procured from retailers following international norms. Induction Heating Machine, (Applications)

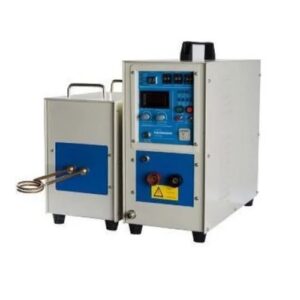

A High frequency induction heating machine is a specialized device. it has the constant current and power control function. which can significantly optimize metal heating process. realize the high efficent and fast heating and bring into play the superior performance of the products.
Ultrahigh series: high frequency, able to heat 0.1mm workpiece. It can ensure the solid welding point which is pleasing and delicate in appearance, intergral geomatric configuration, perfect surface grain, complete crystal structure of internal metal part, limited annealing range and elimination of obvious weld knot.
Working Principal
induction Heating means to produce the alternating current(AC) to create magnetic field through induction coil after induction heating equipment outputs high-frequency current to make the workpiece heated quickly.
An induction annealing machine is a part of industrial equipment designed for annealing Heat method, that is heat treatment system used to modify the properties of materials (typically metals) by Induction heating them to a specific temperature and then allowing them to cooling system. The purpose of annealing is a lot to relieve stresses, improve quality, and improve the microstructure of metals or alloys.
